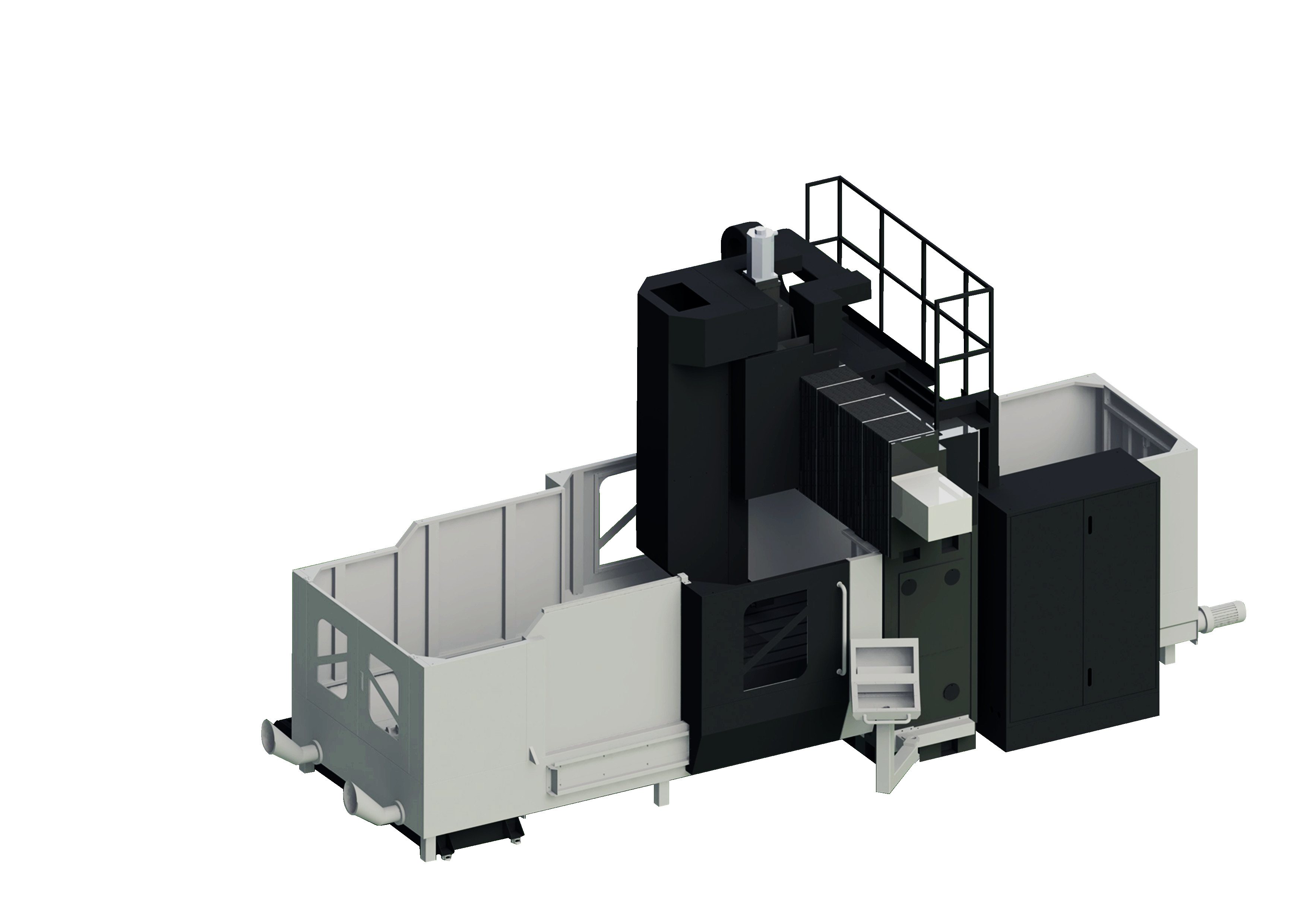

Fixed beam gantry CNC machine center BTMC-1520Q
BTMC-1520Q gantry type machine center is a new model developed to replace the large traditional "C"
type vertical machine center. Comprehensive improve large vertical machine center precision deviation
and the weakness of heavy load deformation, suitable for heavy mold processing, light size and large
processing plate processing.
It has the following advantages:
◆ Improve the machine processing precision, the spindle centerline and Z axis guide way is basic coincidence surface, without accuracy deformation problem of spindle box caused by 780-950mm gap distance of VMC.
◆ Eliminate the accuracy difference caused by the suspension of both ends of the VMC worktable
◆ Y axis doesn’t bear work-piece weight and worktable running is no more than base of table. Solve the
deformation caused by long-term load bearing of vertical table
◆ The bearing capacity of the worktable is about 50% higher than that of VMC.
◆ Z axis adopts Nitrogen balance weight, improves the reaction speed and runs more smoothly than the
VMC weighting hammer.
| Model | BTMC-1520Q |
| Table size | 2000*1300mm |
| X/Y/Z travel | 2000*1660*850mm |
| Distance between tool head and table | 240-1090mm |
| Work table Y slot (NO.-size*pitch) | 7-22*170mm |
| Width of gantry | 1650mm |
| Spindle rotation speed | 6000 rpm/min (optional 8000rpm/min) |
| Spindle Taper | BT50 |
| Spindle Motor | 15kw |
| X/Y/Z axis Rapid feed | 8/10/12 m/min |
| Positioning accuracy | 0.01mm |
| X/Y/Z axis Cutting feed | 8 m/min |
| Dimension | 5800*3300*4300mm |
| Net weight | 15000kg |
| Max load of table | 4000kg |
