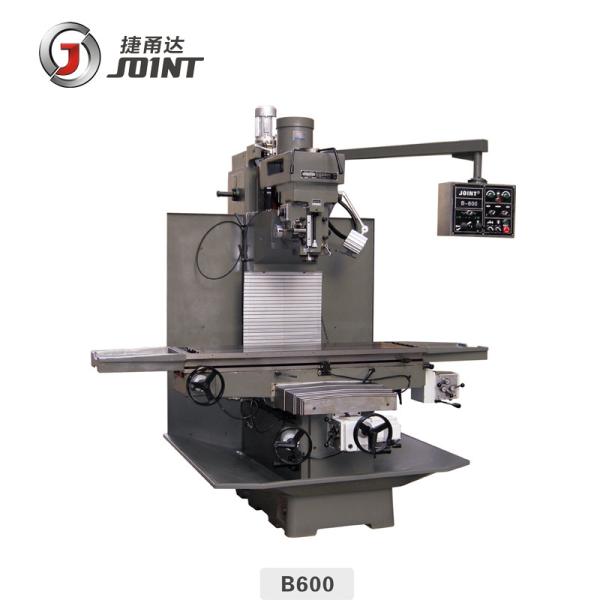

1370mm Table Metal Bed Turret Milling Machine B600 150mm Spindle Quill Travel

Brand Name : JOINT

Model Number : B600

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 25 sets per months

Delivery Time : 15-20 working days

Packaging Details : Wooden package

Type : Bed type

Condition : New

Weight : 2800kg

Dimension(l*w*h) : 2000*2230*2150mm

Cnc or not : Normal

Warranty : 12 Months

Power(w) : 5HP

Table size : 1370*405mm

Color : Opitional

Spindle taper : NT40

Spindle travel : 150mm

Spindle speed : 58-3000Rpm

Contact Now

High-precision component milling and boring machine

1. Bed milling machine, high rigidity and large bearing capacity.

2. Taiwan original precision milling head, ball screw, NSK P4 precision spindle bearing, spindle tolerance 0.002mm.

3. Three axis adopt precision ball screw, with run fast and high accuracy in positioning.

4. Suitable for heavy and large workpiece (800-1000kg) processing.

5. Bed structure, Meehanite cast iron and high rigid structure design.


Specification

ModelB600
Table sizemm1370*405
TravelLongitude (X)mm1000
Crossward (Y)mm350
Vertical (Z)mm640
Travel of spindle quillmm150
Max. distance from the spindle nose to tablemm760
Spindle

Rotation speed
(Step speed milling head)

50HZ rpm58-3000
60HZ rpm70-3600

Rotation speed
(Variable speed milling head)

50HZ rpm58-3250
60HZ rpm70-3900

Rotation speed
(Inverter speed milling head)

50HZ rpm0-4200
60HZ rpm0-4200
Taper NT40
Rated powerHP5HP
Tilt angleForward and backward 0°
Left and right

±90°

Dimensionmm2000*2230*2150
Net weightkg2800



Standard accessories:

1. Taiwan original step speed milling head

2. X/Y axis M power feed

3. Z axis elevotor motor

4. Clamping kit

5. NT40 milling chuck (7pcs)

6. Working light

7. Draw bar

8. Oil pump

9. Manual operation

10. Guide way cover

11. Tool and tool box
